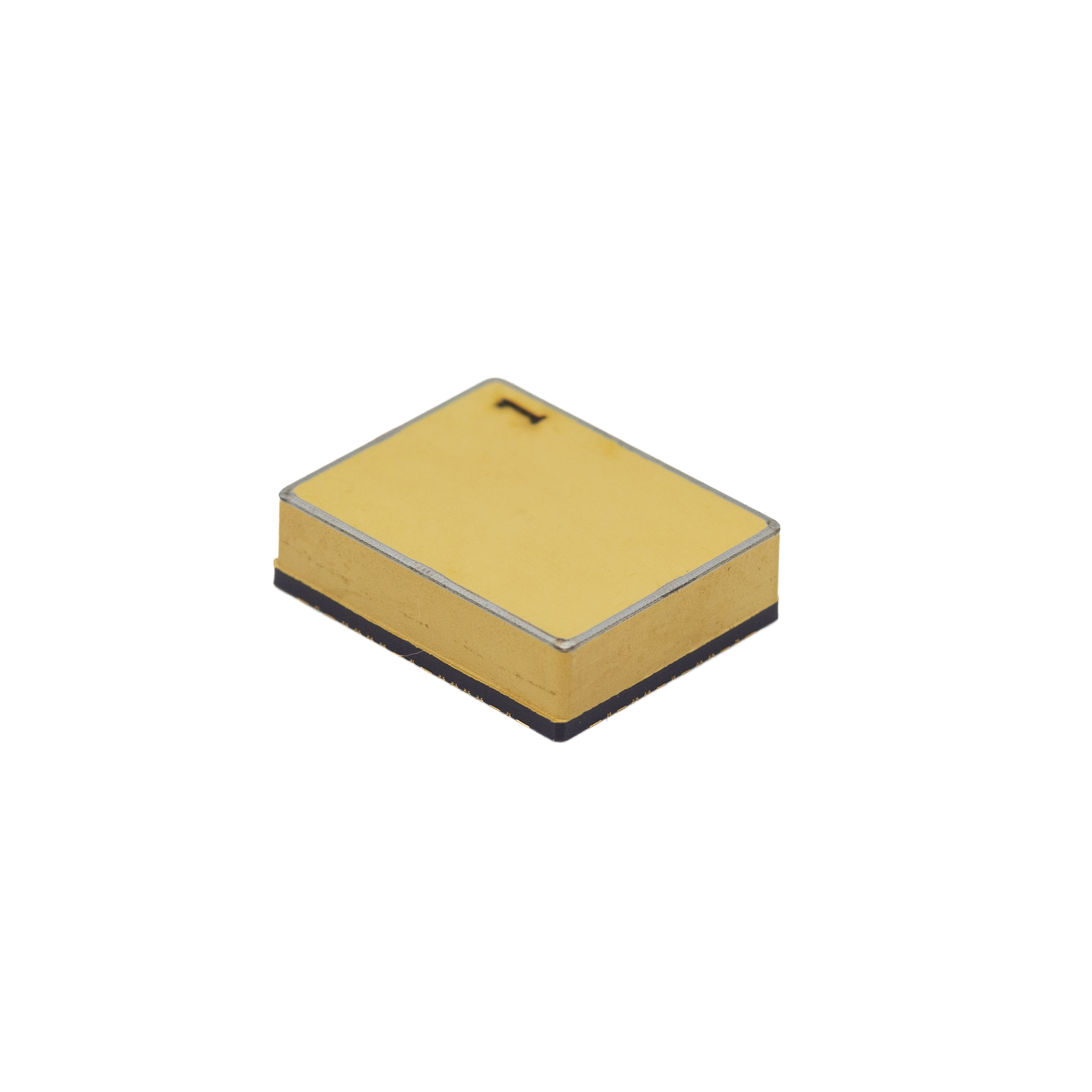

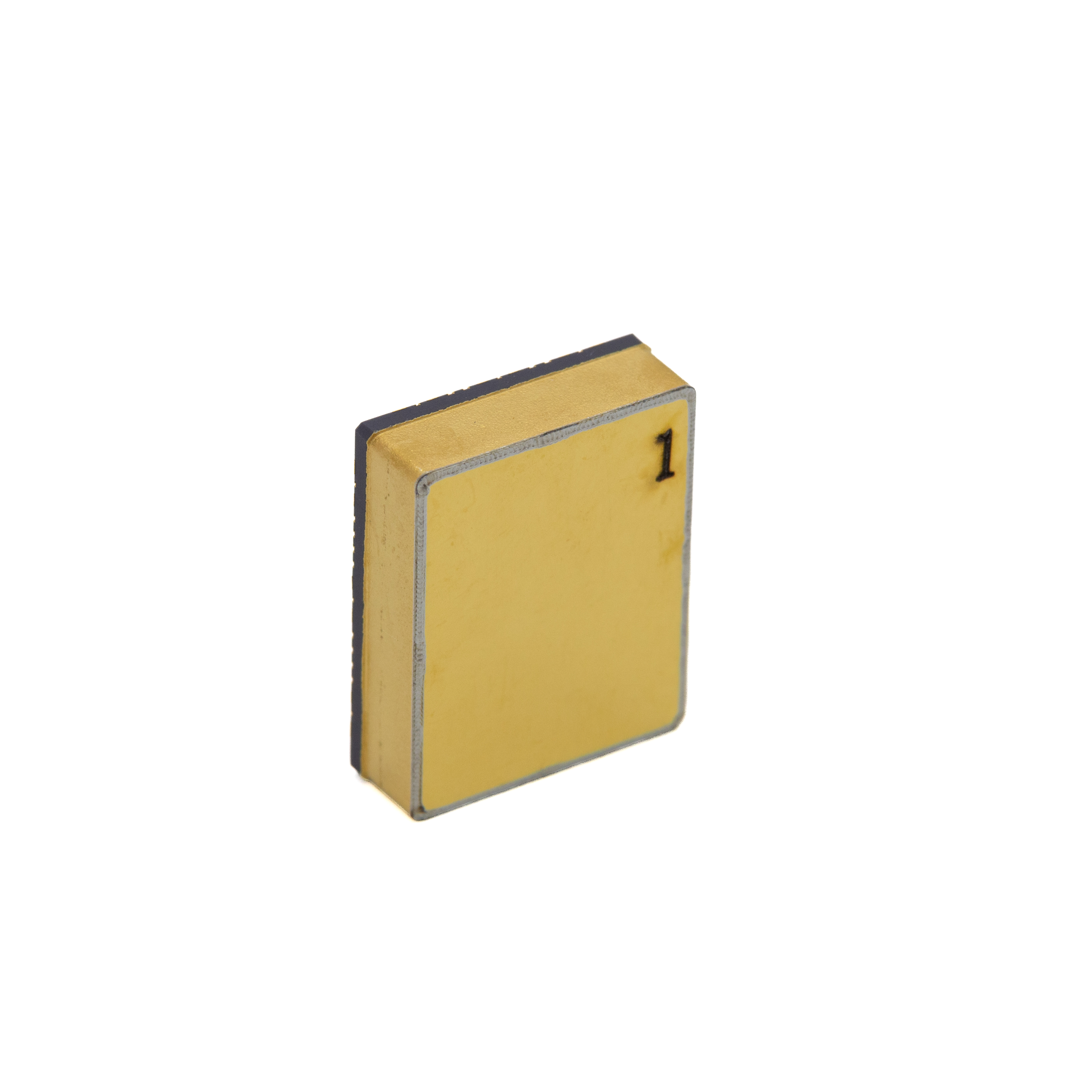

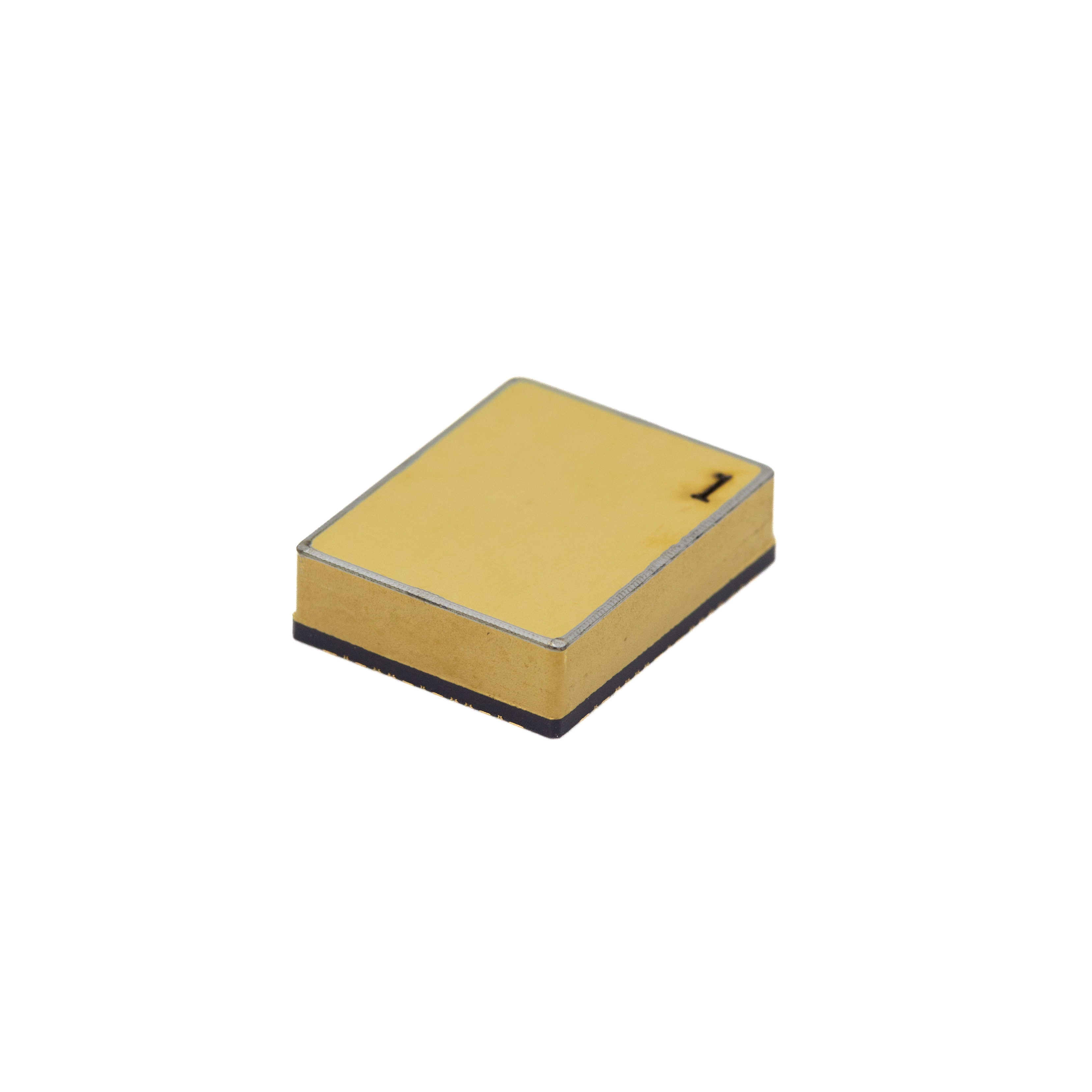

10~20G跳频源,10~20GHz

10~20G跳频源,10~20GHz

型号:HXY-FS100200-02A

原价：~~￥3,500.00-4,500.00~~

￥ 3,500.00-4,500.00(含13%增值税)

销量

多规格

1只
2-10只
11-20只
20只以上

数量
- -
- +
（库存:0）

（货期:1，期货（2-3天左右）2，如果库存为0，订货周期为4-5周，如有需求，请与线下客服联系）

产品详情

规格书下载

资料包下载

产品描述

该款型号是宽带跳频源，工作频率范围为10GHz至20GHz，内部集成LDO，采用两段集成VCO锁相环架构，支持点频与跳频工作模式，模块具有优良的相位噪声、低杂散抑制。需要外供参考时钟，通过SPI实现频率配置。该器件是电子对抗、宽带接收机、射频测试系统领域的理想选择。

电性能参数 (+5VDD1, +12VDD2，25℃)

参数	代号	最小值	典型值	最大值	单位
工作频率	fc	10000	-	20000	MHz
频率步进	Step	-	5	-	MHz
跳频时间	Hopping	-	150	-	us
输出功率	Pout	-	0	-	dBm
谐波抑制	Harm	-	-15	-	dBc
杂波抑制	Spur	-	-65	-	dBc
分频抑制	Spur	-	-15	-	dBc(15G以上时)
相位噪声	PN	-	-92	-	dBc/Hz@1kHz(20G)
输入/输出阻抗	Impedance	-	50	-	Ω
外参考输入频率	fREF	-	100	-	MHz
外参考输入功率	PREF	0	-	5	dBm
外参考输入相位噪声		-	-150	-	dBc/Hz@1kHz

备注：电源纹波优于20uVRMS。

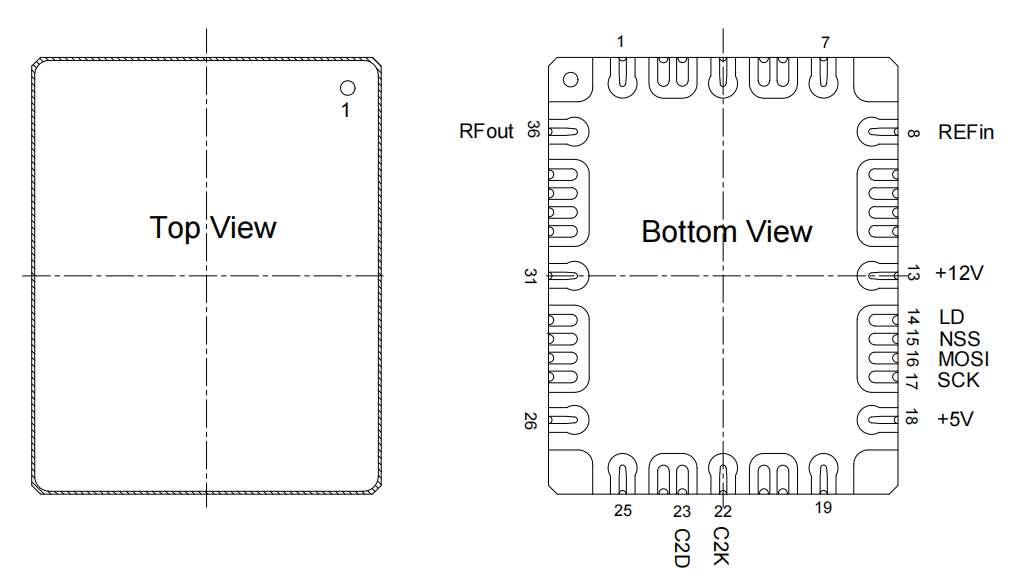

引脚定义

引脚序号	描述	特性
8	REF_in	100M Reference Input
36	RF_out	10~20G RF Output
13	+12V	+12VDD2
14	LD	Digital Lock Detect(Locked=3.3V, Unlocked=0V)
15	NSS	Slave Select
16	MOSI	Master out，Slave in
17	SCK	Serial Clock
18	+5V	+5VDD1
22	C2K	Programming Interface，Not Connected
23	C2D	Programming Interface，Not Connected
Others	NC	Not Connected
	EXPOSED PAD	Ground

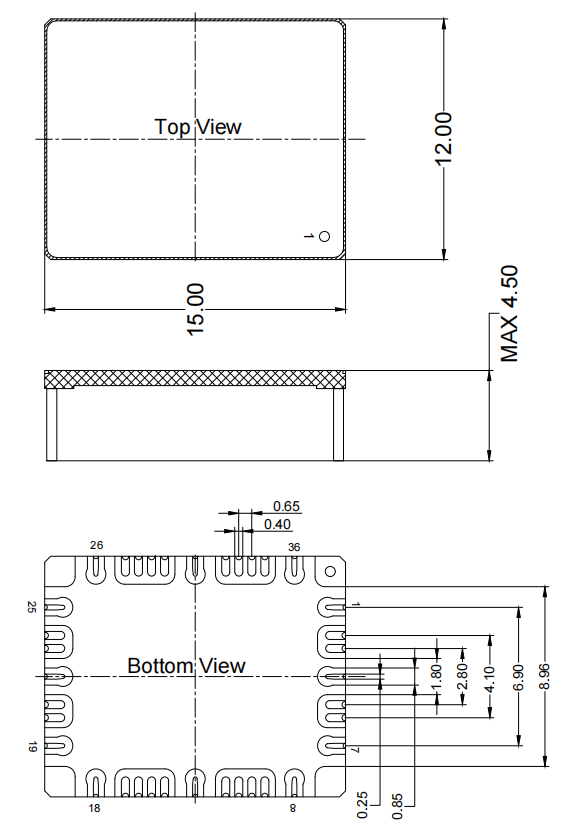

外形尺寸图 (单位：毫米)
