点频源,20.2/23.8GHz

点频源,20.2/23.8GHz

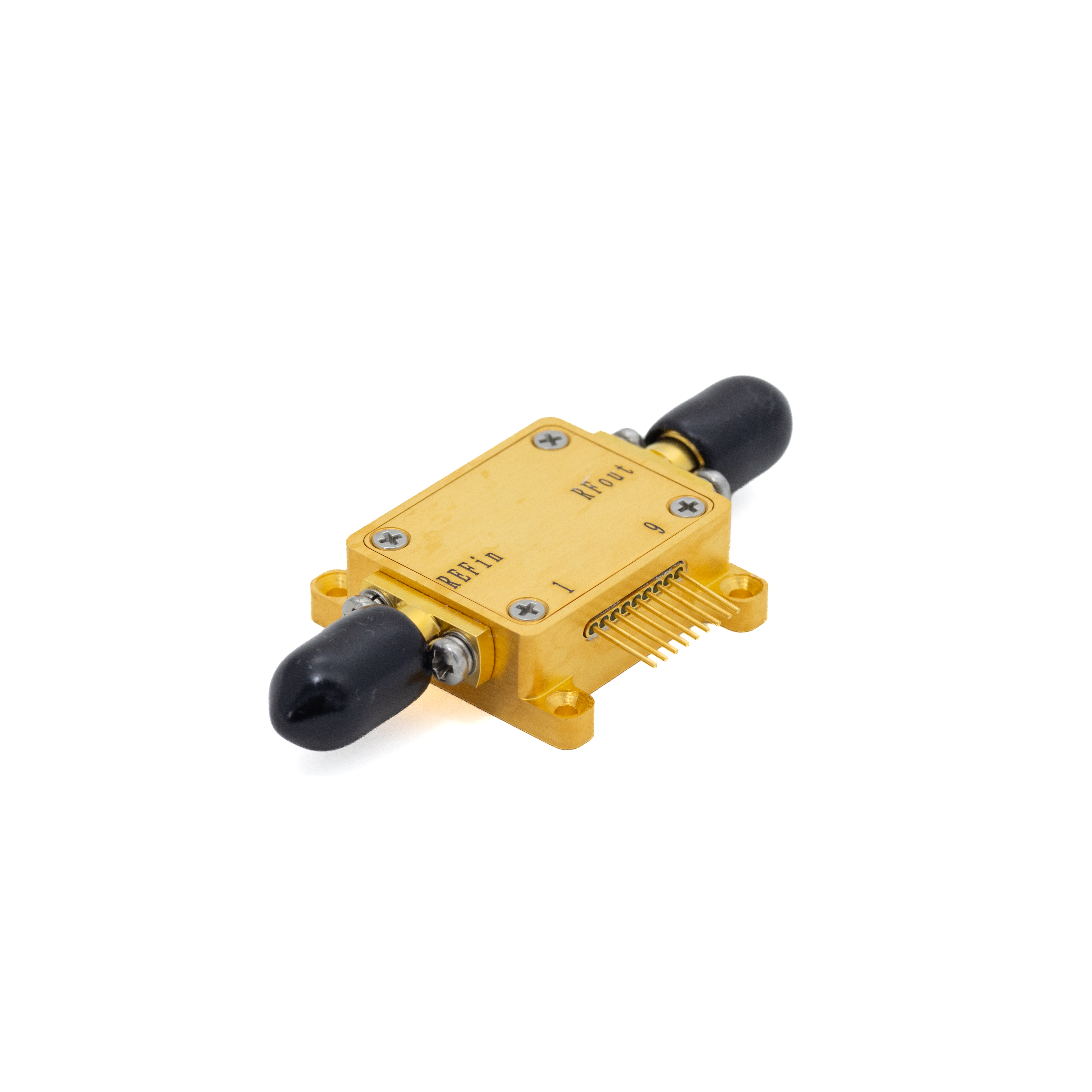

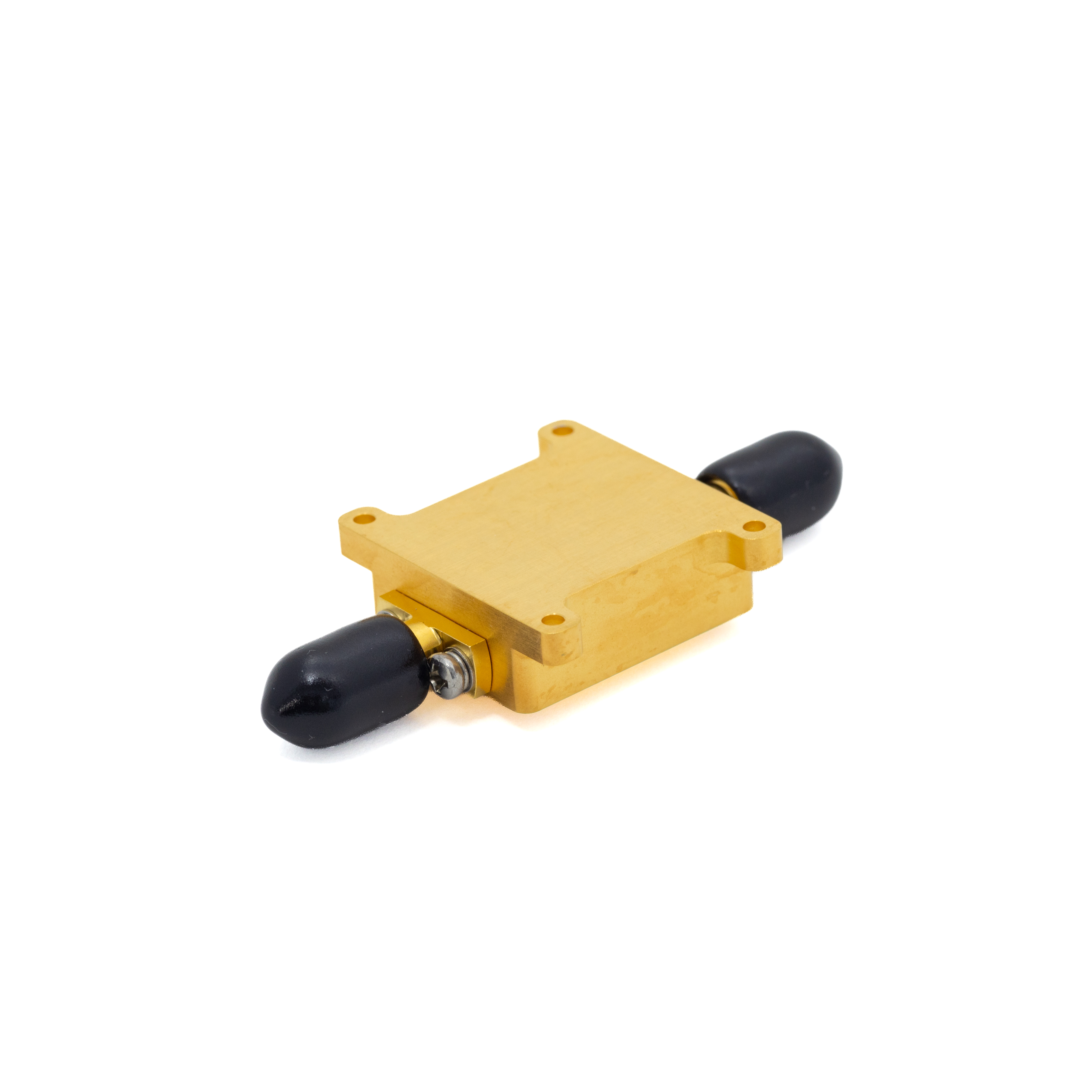

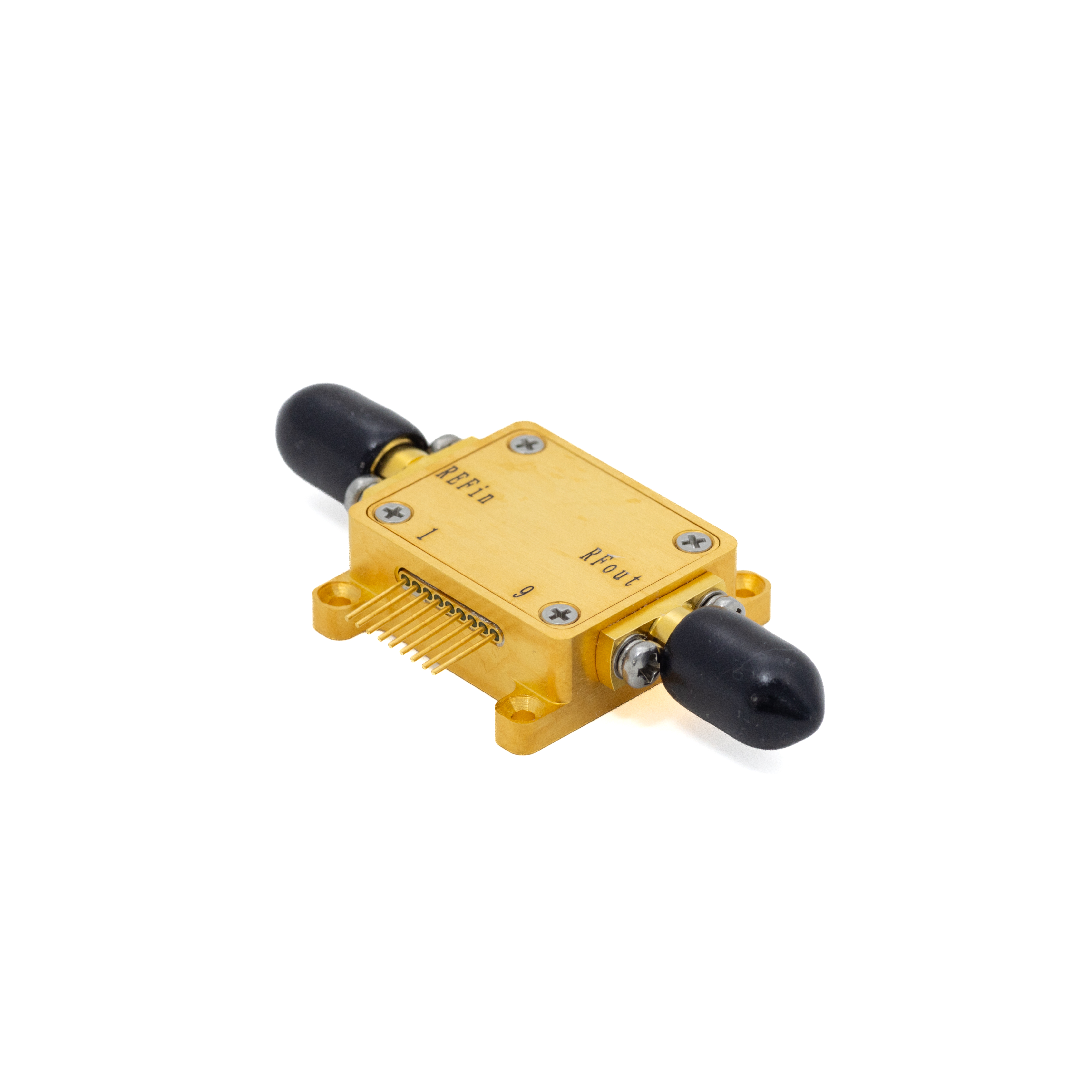

型号:HXY-FS202238-01A

原价：~~￥2,400.00-3,000.00~~

￥ 2,400.00-3,000.00(含13%增值税)

销量

多规格

1只
2-10只
11-20只
20只以上

数量
- -
- +
（库存:0）

（货期:1，期货（2-3天左右）2，如果库存为0，订货周期为4-5周，如有需求，请与线下客服联系）

产品详情

规格书下载

资料包下载

产品描述

该款型号为点频源，工作频率为20.2GHz或23.8GHz固定点频，内部集成LDO，采用VCO锁相环架构，模块具有优良的相位噪声、低杂散抑制。需要外供参考时钟。该器件是电子对抗、宽带接收机、射频测试系统领域的理想选择。

电性能参数 (+5VDC, 25℃)

参数	代号	最小值	典型值	最大值	单位
工作频率	fc	-	20.2/23.8	-	GHz
输出功率	Pout	-	0	-	dBm
谐波抑制	Harm	-	-15	-	dBc
杂波抑制	Spur	-	-70	-	dBc
分频抑制	Spur	-	-20	-	dBc
相位噪声	PN	-	-85	-	dBc/Hz@1kHz(23.8G)
输入/输出阻抗	Impedance	-	50	-	Ω
外参考输入频率	fREF	-	100	-	MHz
外参考输入功率	PREF	0	-	5	dBm
外参考输入相位噪声		-	-150	-	dBc/Hz@1kHz

备注：电源纹波优于20uVRMS。

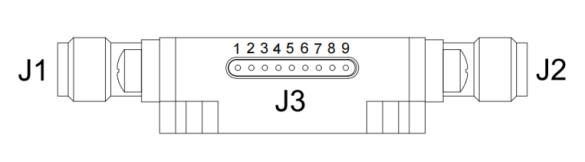

引脚定义

引脚序号	描述	特性
J1	REF_in	100M Reference Input
J2	RF_out	20.2G/23.8G RF Output
J3-1	+5V	+5VDD1(Imax:20mA)
J3-2	LD	Digital Lock Detect(Locked=3.3V, Unlocked=0V)
J3-3	NC	Not Connected
J3-4	NC	Not Connected
J3-5	NC	Not Connected
J3-6	C2K	Programming Interface，Not Connected
J3-7	C2D	Programming Interface，Not Connected
J3-8	GND	Ground
J3-9	+5V	+5VDD2(Imax:350mA)

9芯排针接头

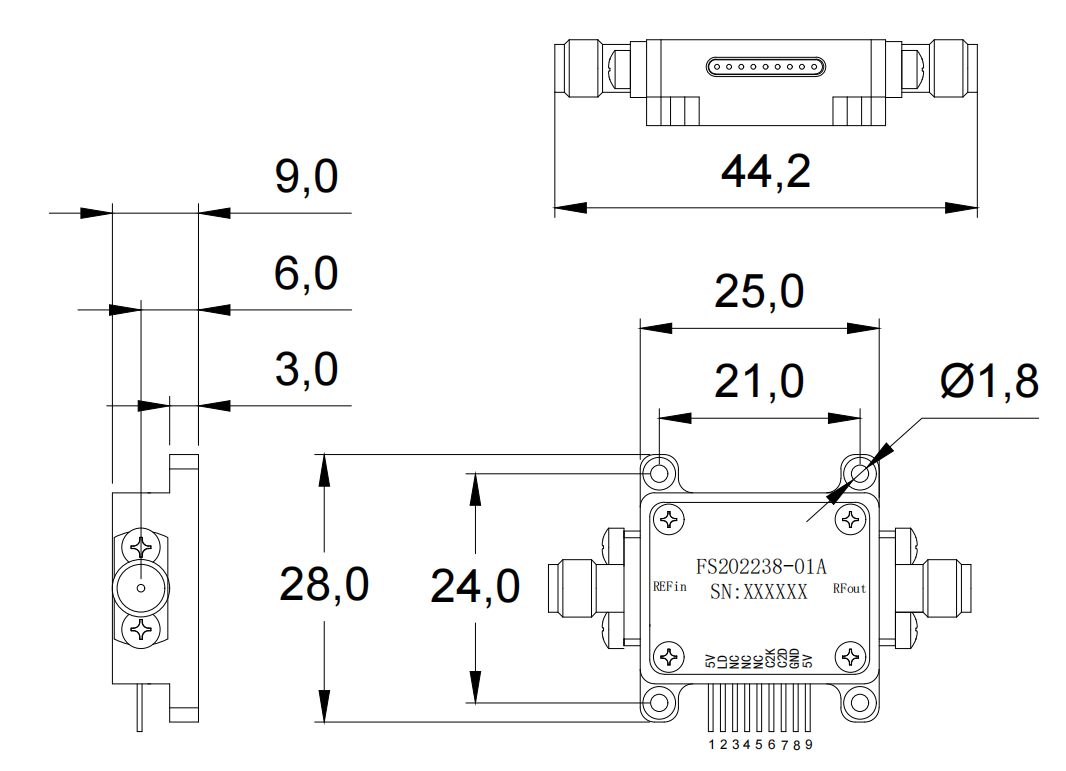

外形尺寸图 (单位：毫米)
