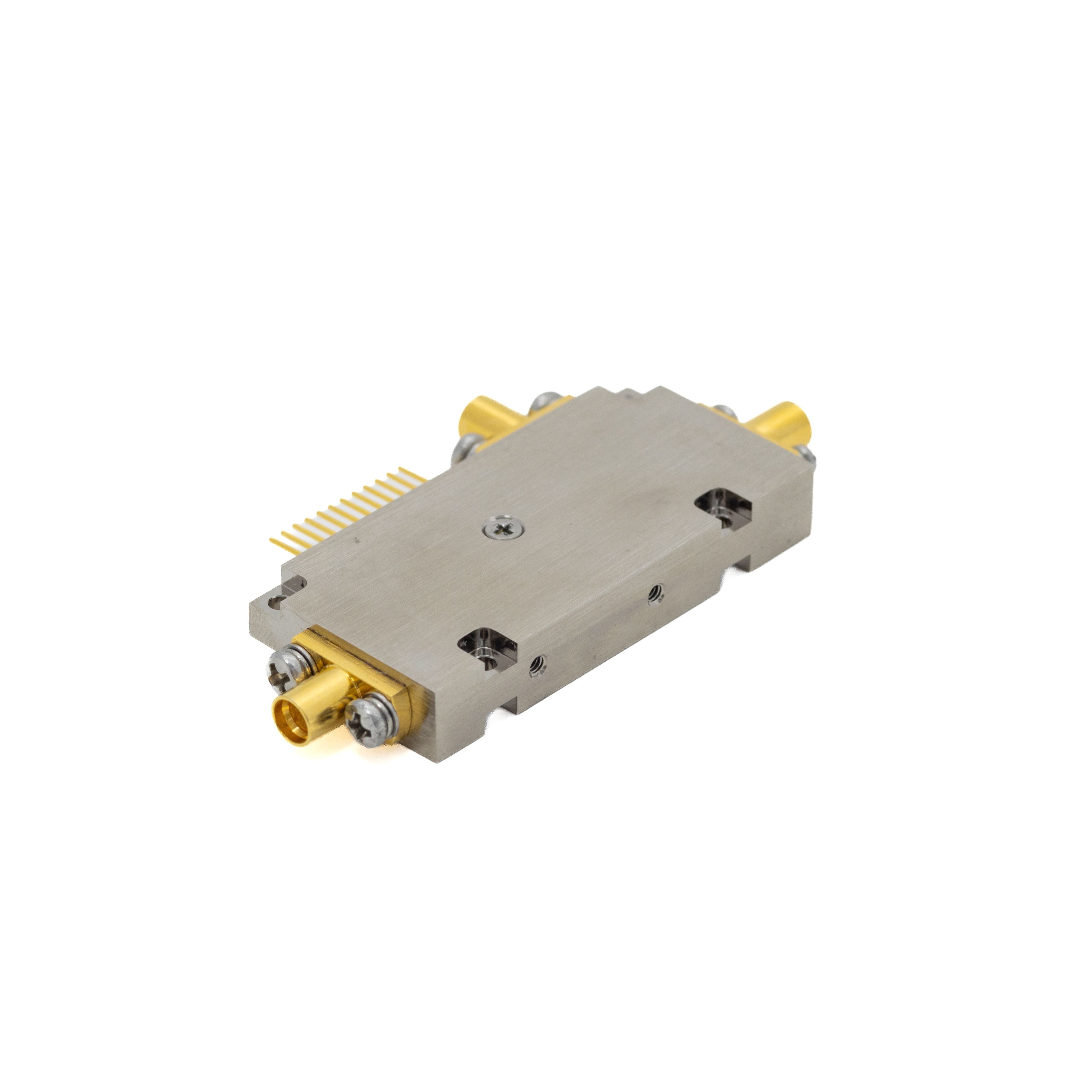

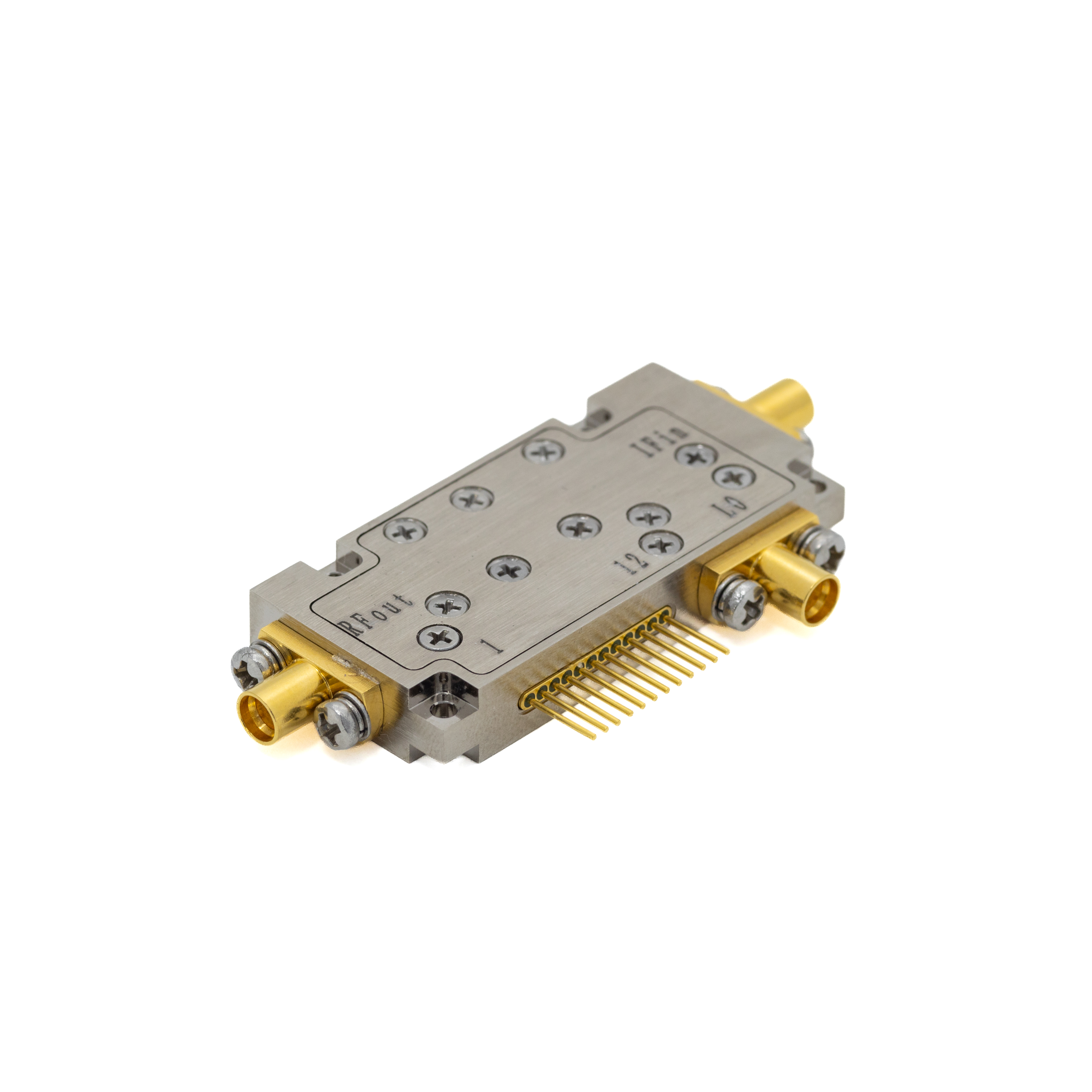

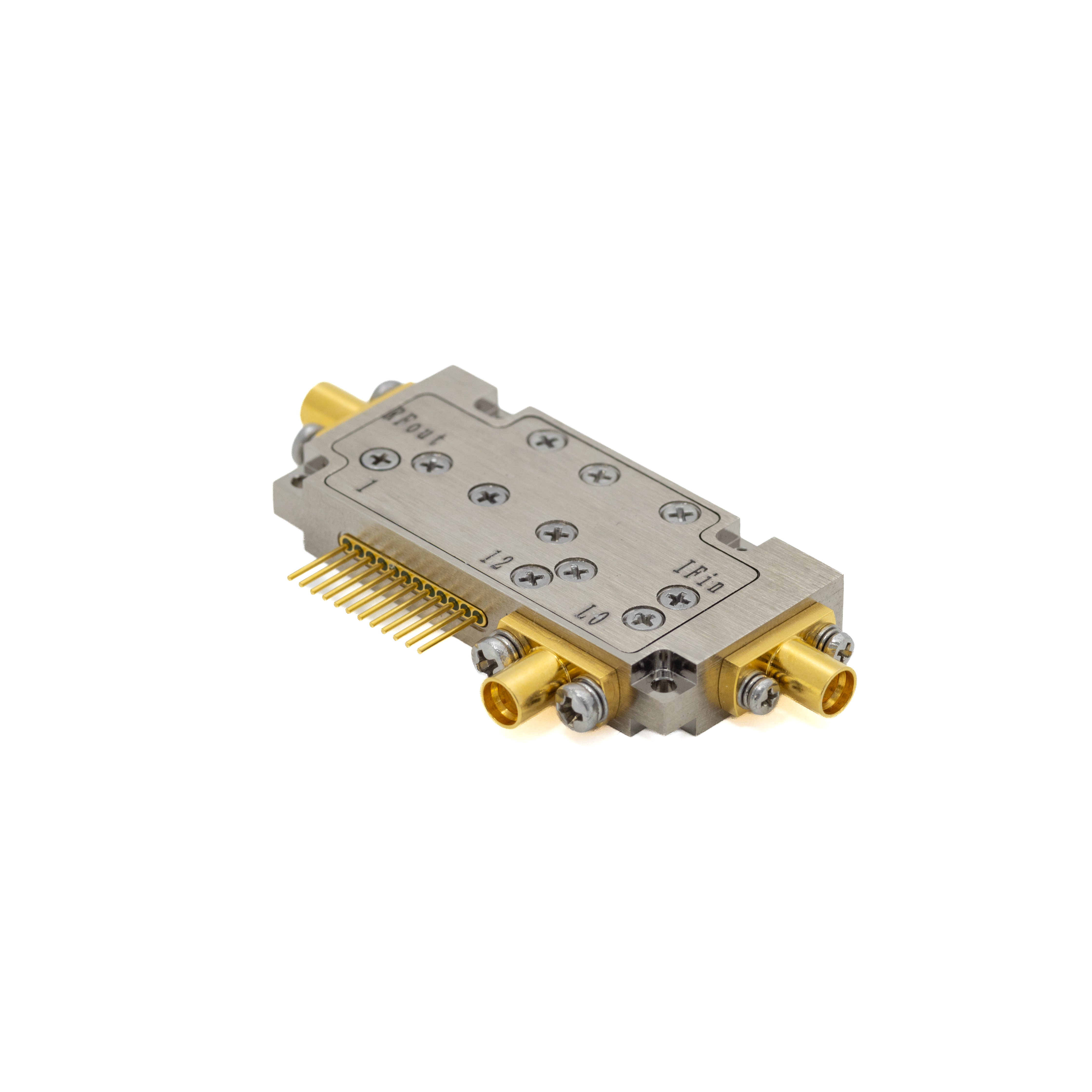

上变频SIP模块,18~40GHz

上变频SIP模块,18~40GHz

型号:HXY-UCB180400-1

原价：~~￥12,000.00-19,000.00~~

￥ 12,000.00-19,000.00(含13%增值税)

销量

阶梯价格

1只
2-10只
11-20只
20只以上

数量
- -
- +
（库存:0）

（货期:1，期货（2-3天左右）2，如果库存为0，订货周期为4-5周，如有需求，请与线下客服联系）

产品详情

规格书下载

资料包下载

产品功能

完成宽带输入信号上变频功能，采用一次超外差变频模式，内置放大器、数控衰减、均衡、混频、开关滤波等功能，采用±5V供电，TTL并口控制，射频接口采用2.92-K，本振及中频接头采用SMA-K接头，使用较为灵活。

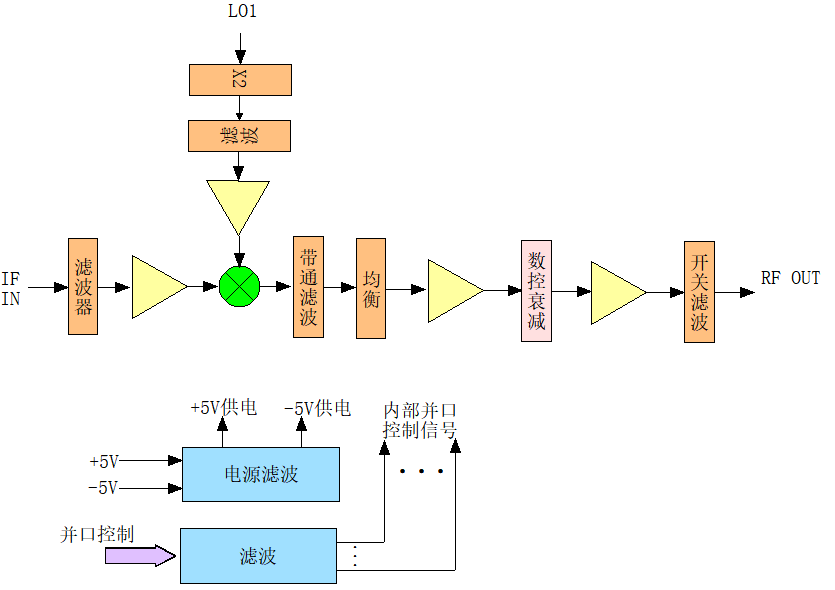

原理框图

电性能参数 (Pin=-5±2dBm,VCC:+5V,VEE:-5V ,25℃, 50Ω)

参数	代号	最小值	典型值	最大值	单位	备注
输入中频频率	fIF	5	-	16	GHz
中频输入功率	IF	-7	-5	-3	dBm
变频瞬时带宽	BW		1000/2000		MHz
输出射频频率	fRF	18	-	40	GHz
输出功率	Pout	-	5		dBm
杂散抑制	SR		50		dBc
射频数控衰减	ATT	1	-	31	dB

本振输入频率	fLO		17/18.5/22.5		GHz
本振输入功率	PLO	4	-	7	dBm
本振杂散抑制	SRLO	2	-	5	dBm	含分谐波杂散
本振谐波抑制	HR2	45	-	-	dBc

端口驻波	SWR	-	-	2.5	-
+5V工作电流	Icc	-	-	0.4	A
-5V工作电流	Iee	-	-	0.1	A
通信方式	-	-	并口	-	-	3.3V-LVTTL

引脚定义

引脚序号	描述	特性
1,2	VDD	电源+5V
3	GND	电源地
4	VEE	电源-5V
5	射频开关滤波C1	开关滤波器组，控制见真值表
6	射频开关滤波C2	开关滤波器组，控制见真值表
7	射频开关滤波C3	开关滤波器组，控制见真值表
8	射频衰减1dB	1:衰减，0：不衰减
9	射频衰减2dB	1:衰减，0：不衰减
10	射频衰减4dB	1:衰减，0：不衰减
11	射频衰减8dB	1:衰减，0：不衰减
12	射频衰减16dB	1:衰减，0：不衰减

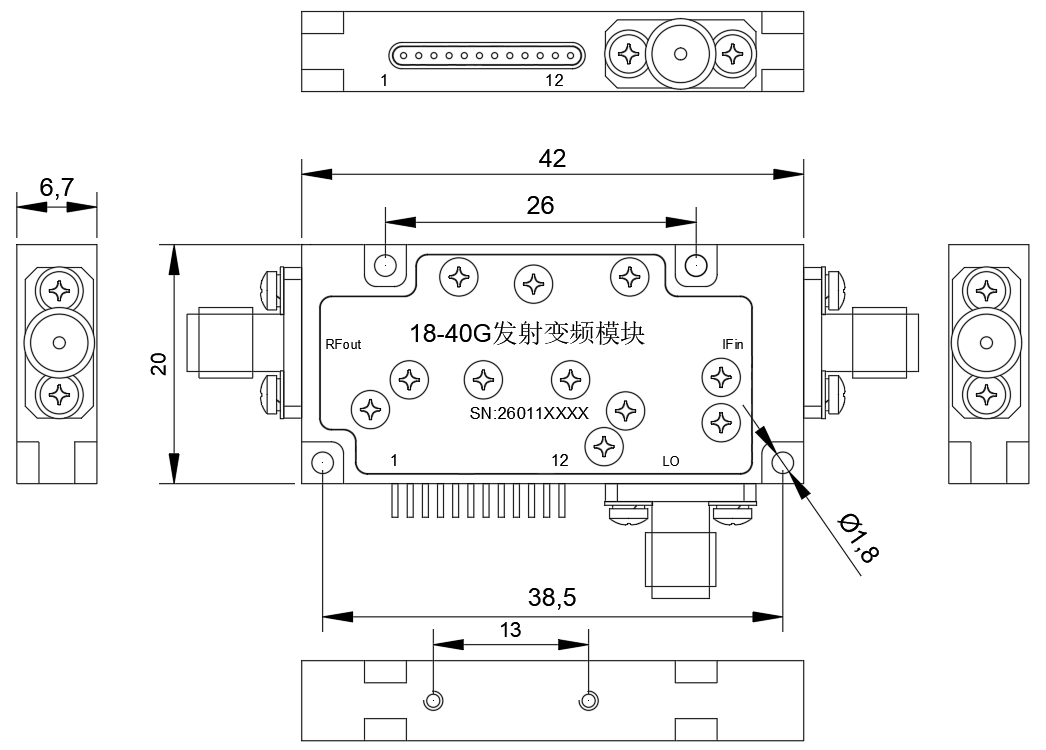

外形尺寸图 (单位：毫米)
