幅相控制SIP器件,7000MHz~9000MHz

型号:HXY-APS7090

原价：~~￥3,800.00-4,500.00~~

￥ 3,800.00-4,500.00(含13%增值税)

销量

阶梯价格

1只
2-10只
11-20只
20只以上

数量
- -
- +
（库存:0）

（货期:1，期货（2-3天左右）2，如果库存为0，订货周期为4-5周，如有需求，请与线下客服联系）

产品详情

规格书下载

资料包下载

产品概述

该款型号为幅相控制模块，可实现幅度控制、相位控制、通道关断等功能。

模块尺寸为15mm*15mm*4mm，体积远远小于传统模块，重约1g；CQFN管壳为全屏蔽化设计，可有效解决电磁兼容问题。

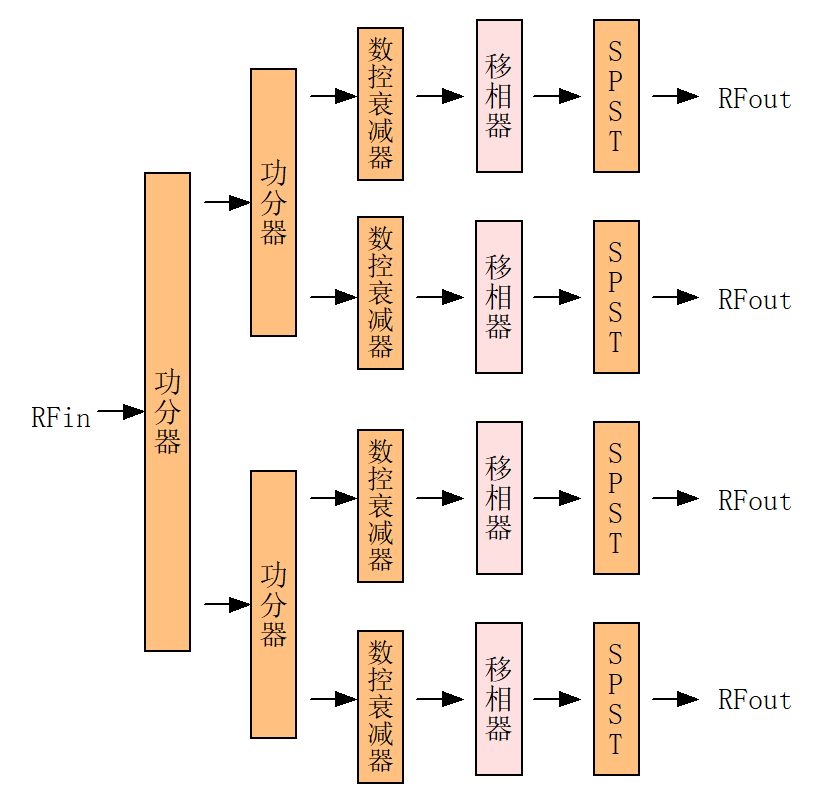

功能框图

电性能参数 (+5.0VDD，-5.0VEE，25℃, 50Ω)

参数	代号	最小值	典型值	最大值	单位	备注
工作频率	fRF	7000	-	9000	MHz
插入损耗	IL	-	21.5	-	dB
幅度控制	Amp	0	-	31.5	dB	5位，步进1dB
相位控制	Ph	0	-	360	°	7位，步进2.6°
开关关断比	SW	-	60	-	dBc
端口驻波	VSWR	-	-	1.5
+5V工作电流	ICC	-	-	30	mA	纹波≤20mV
-5V工作电流	IEE	-	-	50	mA	纹波≤20mV

引脚定义

引脚序号	描述	特性
1	RFout3	输出端口3
2	VEE	-5V供电，需就近加10uF和0.01uF滤波器电容
4	VDD	+5V供电，需就近加10uF和0.01uF滤波器电容
6	CLK1	串口时钟
7	LATCH1	串口锁存
8	DATA1	串口数据
10	VEE	-5V供电，需就近加10uF和0.01uF滤波器电容
11	RFout4	输出端口4
12	SW4	输出端口4关断开关
17	RFin	输入端口
22	SW1	输出端口1关断开关
23	RFout1	输出端口1
24	VEE	-5V供电，需就近加10uF和0.01uF滤波器电容
27	VDD	+5V供电，需就近加10uF和0.01uF滤波器电容
28	CLK2	串口时钟
29	LATCH2	串口锁存
30	DATA2	串口数据
33	RFout2	输出端口2
34	SW2	输出端口2关断开关
44	SW3	输出端口3关断开关

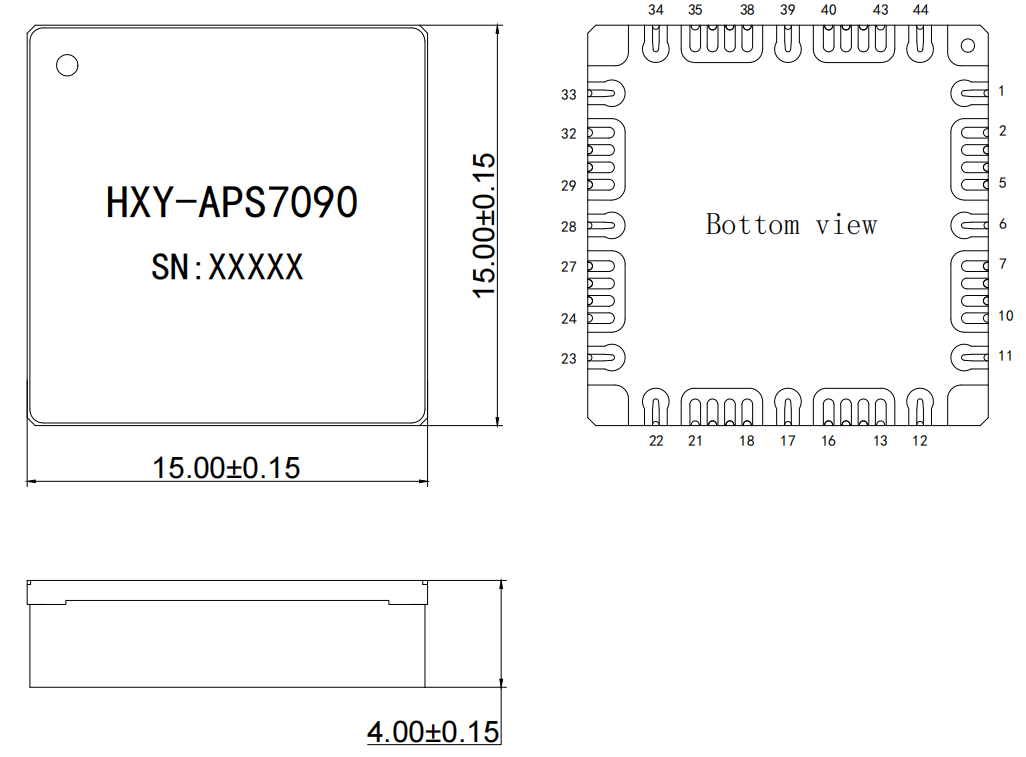

外形尺寸图 (单位：毫米)
