上变频SIP器件,8376MHz±3.5MHz

型号:HXY-UCS8376B7M

原价：~~￥2,800.00-3,800.00~~

￥ 2,800.00-3,800.00(含13%增值税)

销量

阶梯价格

1只
2-10只
11-20只
20只以上

数量
- -
- +
（库存:0）

（货期:1，期货（2-3天左右）2，如果库存为0，订货周期为4-5周，如有需求，请与线下客服联系）

产品详情

规格书下载

资料包下载

产品概述

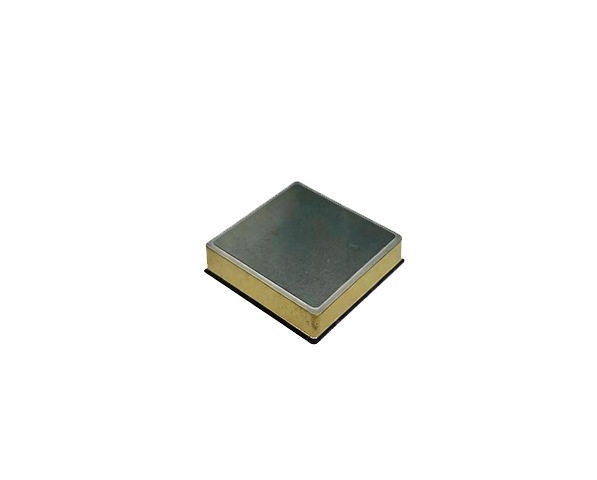

该款型号为发射上变频模块，可实现放大、滤波、变频等功能，具备高杂散抑制、模块间一致性好等特点。

模块尺寸为15mm*15mm*4mm，体积远远小于传统模块，重约1g；CQFN管壳为全屏蔽化设计，可有效解决电磁兼容问题。

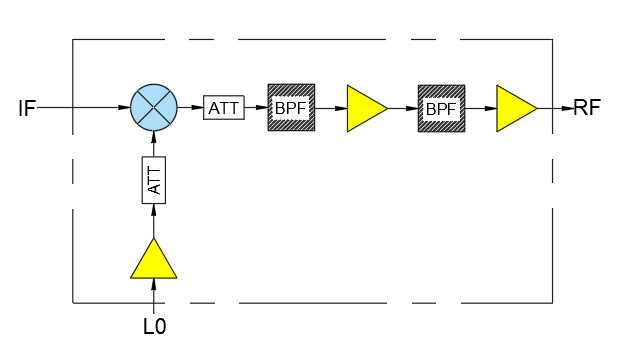

功能框图

电性能参数 (+5.0VDD，25℃, 50Ω)

参数	代号	最小值	典型值	最大值	单位	备注
射频输出频率	fRF	-	8376	-	MHz
中频输入频率	fIF	-	1050	-	MHz
信号带宽	BW	-	7	-	MHz	中心频点处任意7MHz
本振输入功率	PLO1	2	-	4	dBm
发射增益	Gp	33	-	35	dB	常温
模块间幅度一致性	ΔGP	-1	-	1	dB
发射输出功率	Pout	17	-	-	dBm
三阶互调	IM3	24	-	-	dB	功率输出17dBm时测试
输出杂波抑制	Spur	55	-	-	dBc
端口驻波	VSWR	-	-	1.5
+5V工作电流	ICC	-	-	180	mA	纹波≤20mV

引脚定义

引脚序号	描述	特性
1	IF	中频输入端口
2	VDD	本振放大器供电端口，需就近加10uF和0.01uF滤波器电容
3	GND	地
4~8	NC	空载
9	VDD	射频放大器供电端口，需就近加10uF和0.01uF滤波器电容
10	GND	地
11	RF	射频输出
12~26	NC	空载
27	VDD	射频放大器供电端口，需就近加10uF和0.01uF滤波器电容
28	GND	地
29~32	NC	空载
33	LO	本振输入
34~44	NC	空载

备注：VDD需要同时上电，管壳需腹部接地。

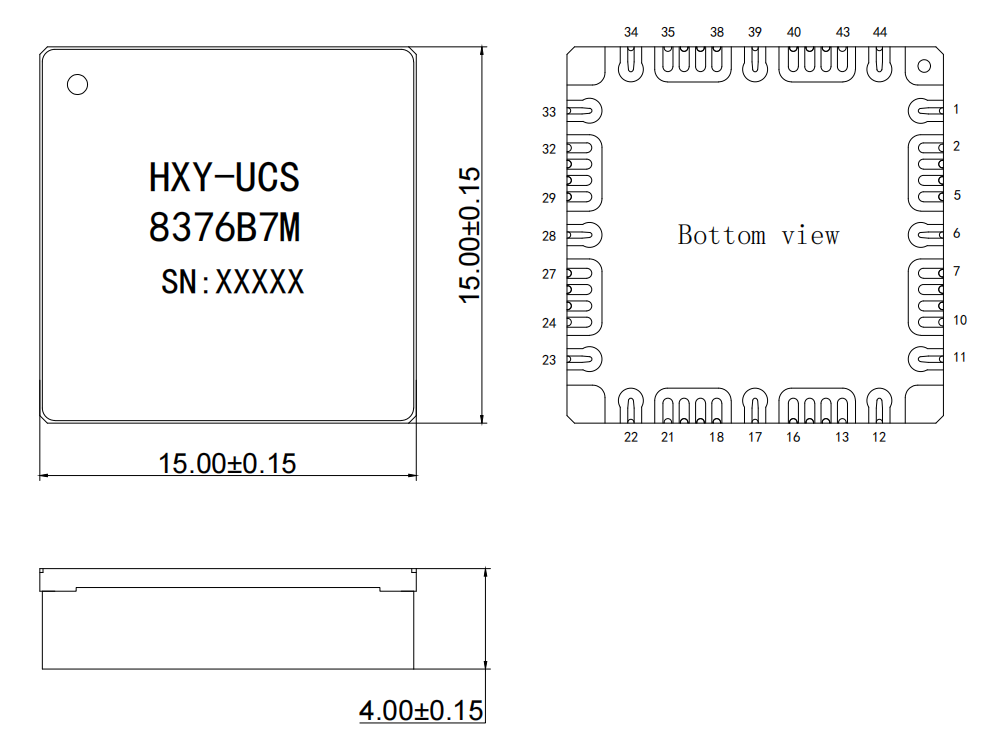

外形尺寸图 (单位：毫米)
